Yes, a topographic survey makes a split level lot much easier to design. A split level site sits at different heights across the land. One part might be well above another. Flat measurements alone can’t describe that. You need to know the elevations too. A topographic survey captures both the shape and the height of the ground. That gives designers a true three-dimensional picture. And on a lot with real elevation changes, that picture is essential.

Split level lots look tricky, and they can be. But with the right survey data, the design team can plan smart. The trick is measuring the ground well before the design begins.

A Split Level Site Needs a Three Dimensional Starting Point

A split level site needs a three-dimensional starting point, not just flat lines. On level land, you can mostly get by with length and width. On a split level lot, height is just as important. Different parts of the site sit at different elevations. So a plan that ignores height misses the whole point of the property.

A topographic survey delivers that third dimension. It records how high or low each part of the site sits, along with its position. This lets the designer see the land as it really is, with all its levels. So they can plan a building that steps with the grade, instead of fighting it. Starting with a full 3D picture is what makes a split level design possible. Without it, the team is working half blind.

Where Should Elevation Breaks Be Captured?

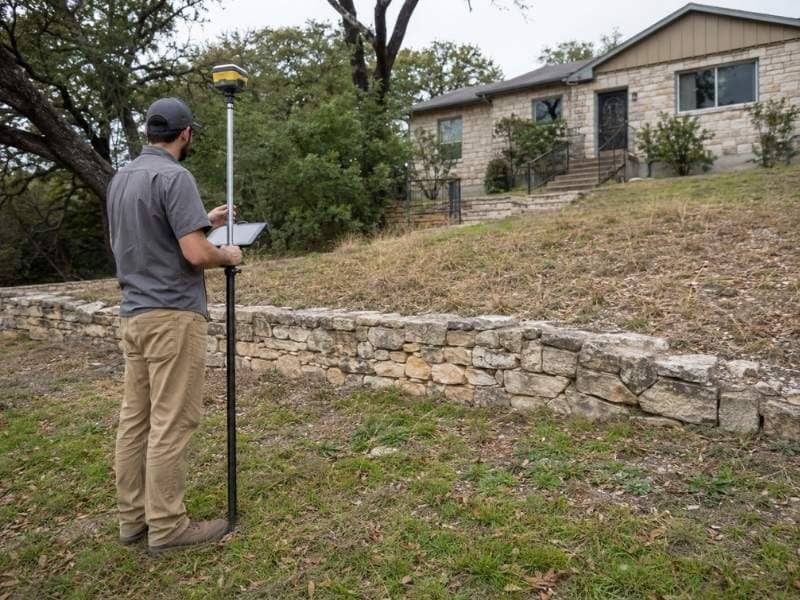

Elevation breaks should be captured wherever the ground changes level. These breaks are the spots where the land shifts from one height to another. They’re the most important features on a split level lot. So the survey focuses on them. Missing a key break means missing how the site actually steps.

The survey should record several kinds of features that mark these changes. Grade breaks show where a slope starts or stops. Walls and steps reveal built transitions between levels. Pavement edges and existing surfaces show how the ground was shaped before. Capturing all of these lets the surveyor reproduce the site accurately. So the designer sees exactly where each level begins and ends. That detail is what turns a confusing sloped lot into a clear, usable map. Precise elevation breaks are the backbone of a good split level survey.

Connecting Building Levels to the Surrounding Ground

The building’s levels have to connect to the ground around them. On a split level home, different floors meet the earth at different points. A lower level might open to a back yard, while an upper floor meets the street side. So the design must tie each level to the right ground elevation. The survey provides the heights that make this possible.

This connection is where split level design gets interesting. Entrances, floors, and outdoor areas all need to line up with the surrounding grade. The survey shows where the ground sits at each of these spots. So the designer can plan doors and patios that meet the earth smoothly. Get this right, and the home flows naturally with its site. Get it wrong, and you end up with awkward steps or drops. Accurate ground elevations keep every level properly connected.

How Can Contours Help Compare Design Options?

Contours help you compare design options with real elevation data. A contour line links points of equal height, showing the site’s shape at a glance. Read together with spot elevations, contours reveal how the land rises and falls across the whole lot. So designers can use them to test different ideas before committing.

This comparison saves time and money. One design might place the home high on the lot, needing less fill. Another might step it lower, closer to the street. Contours let the team see how each option relates to the grade. So they can weigh the tradeoffs with facts, not guesses. On a split level lot, where placement really matters, this is a powerful tool. The survey’s contour data lets professionals explore several concepts. Then they pick the one that fits the land best.

From Field Measurements to a Design Ready Base

Field measurements become a design ready base once they’re organized well. The survey crew gathers elevations and features on site. Then that raw data gets turned into a clean, usable map. This base supports the architect, engineer, and other designers. So the survey’s real value shows up when the information is ready to design from.

It’s important to see the survey as a starting point, not the final design. The topographic map shows the existing conditions accurately. The design work comes after, built on that foundation. So the surveyor delivers organized data, and the design team develops the plan from it. On a split level lot, that clean base is especially valuable. The elevation detail feeds directly into a design that works with the site’s levels. Good field data, well organized, sets the whole project up for success.

Frequently Asked Questions

What contour interval is appropriate for a split level residential site?

It depends on how much the grade changes and the design needs. Sites with sharp elevation shifts often need a tighter interval to show detail. Ask your designer what interval suits the project before fieldwork begins.

Can a topographic survey show stairs and retaining walls?

Yes, when included in the scope. Surveyors can locate stairs, retaining walls, and their elevations. On a split level lot, these built transitions matter a lot, since they mark where the site steps between levels.

Should finished floor elevations be included when an existing home is on the property?

Yes, if the design needs them. Recording the existing home’s finished floor heights helps the designer relate new work to what’s there. Sharing this need early lets the surveyor capture it during fieldwork.

Can the survey cover only the portion of a lot planned for construction?

Often yes. If only part of the lot will be built on, the survey can focus there. Confirm the scope with your surveyor, so the mapped area matches what your design actually requires.

What file format should a designer request for topographic data?

Designers usually want CAD formats they can work with directly. Confirm the format and any layering standards early. That way the data drops cleanly into the design software, without extra conversion work later.
