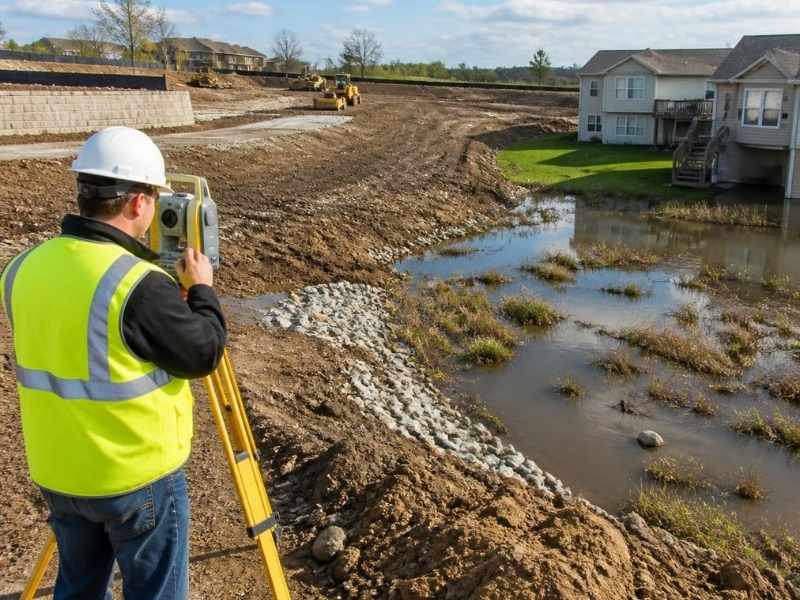

When a neighbor’s construction project leaves your property flooding, proving what happened takes measurements, not accusations. A topographic survey traces runoff after nearby construction changes drainage, documenting the terrain and the new features that may have redirected water. The survey maps the flow route between the construction and the affected property, records what changed, and supplies neutral measurements that engineers or attorneys can use. It stays strictly on the geometry, leaving questions of blame to others while providing the factual foundation any review needs.

Mapping the New Terrain Between the Construction Site and Affected Property

Understanding a drainage change means looking at the whole path the water travels, so the survey maps the new terrain between the construction site and the affected property. The grades get collected across the suspected flow route rather than only at the location of visible damage.

The damage spot alone doesn’t explain the problem. Water arriving at a flooded area comes from somewhere, following the terrain from the construction site across the intervening ground. Surveying only where the flooding shows would miss the route the water actually takes. The survey maps the full path.

Following the flow route reveals the cause. By mapping the terrain from the construction site to the affected property, the survey shows how water now moves between them. That complete picture is what lets an engineer understand whether and how the construction changed the drainage.

Identifying Features That Did Not Exist Before Development

Construction adds things to a site, and those additions can redirect water. The survey identifies the features that did not exist before development, including new pads, walls, roads, berms, ditches, inlets, outlets and cleared areas.

These new features often explain the change. A new building pad or wall can block water’s old path and send it a different way. A new road or berm can redirect flow. New ditches, inlets and outlets can concentrate water where it didn’t gather before. Cleared areas can change how the ground absorbs and sheds runoff. The survey documents each new feature.

Pinpointing what’s new focuses the analysis. By identifying the features the construction added, the survey shows what might have altered the drainage. This gives an engineer reviewing the situation specific changes to evaluate, rather than a vague sense that something upstream is different.

Recording Elevation Transitions Along the Shared Edge

The boundary between the properties is where the water crosses, so the survey records the elevation transitions along the shared edge. The spot elevations, breaklines, fences, swales, walls and low points near the boundary all get captured.

This edge tells much of the story. Where water crosses from one property to another, the elevations at the boundary control how it flows. A low point along the edge shows where water concentrates. A wall or swale might channel or block it. The survey maps these transitions in detail.

Documenting the shared edge matters for any dispute. The boundary is often where the disagreement centers, since that’s where one property’s water becomes another’s problem. Recording the elevations and features along it precisely gives everyone a clear picture of how water moves across the line, grounded in measurement rather than argument.

Comparing Current Conditions With Approved or Historical Information

To show what changed, the survey supports comparing the current conditions against earlier information. The approved design plans, earlier surveys, aerial records and construction documents all help evaluate whether the surface actually changed.

The comparison reveals the alteration. Laying the current terrain against approved plans might show the construction was built differently than permitted. Comparing against earlier surveys or aerials shows how the ground changed over time. Construction documents indicate what was supposed to happen. Together, these help establish whether and how the drainage was altered.

This comparison strengthens the factual record. A drainage change is easier to understand when the current conditions can be measured against what existed or was approved before. The survey provides the current measurements and supports comparing them to the historical information, building a clear picture of the change.

Supplying Neutral Measurements for Engineering or Legal Review

The survey’s role is to document, not to judge, so it supplies neutral measurements for engineering or legal review. The survey records the geometry, while the drainage causation, code compliance, damages and liability require other professional analysis.

This neutrality is deliberate and important. A drainage dispute can end up in front of engineers or attorneys, and the survey serves them best by staying strictly factual. It measures the terrain, the new features and the elevations without concluding who caused the problem or who’s responsible. Those determinations belong to other specialists.

Keeping the survey neutral protects its value. Measured facts carry weight precisely because they don’t take sides. By documenting the geometry and leaving causation and liability to engineers, attorneys and other experts, the survey provides a reliable foundation that any party can trust, whatever conclusions the review ultimately reaches.

Frequently Asked Questions

Must the surveyor enter the neighboring construction property?

Not necessarily. The surveyor can often document the flow route, the new features and the shared edge from the affected property and public areas, mapping what’s visible and measurable. Entering the neighboring property would require permission. Much of the analysis focuses on the affected property and the boundary, so access to the construction site isn’t always required.

Can present-day elevations prove exactly when drainage changed?

Not on their own. Current elevations show the conditions now, but establishing when the change happened requires comparison with earlier information like prior surveys, aerial records, or approved plans. The present-day survey documents the current state, and comparing it against historical data helps establish the timing. The measurements show what is, while the history shows what changed.

Which features should be measured along the shared property boundary?

The spot elevations, low points, breaklines, fences, swales and walls near the boundary all matter, since they control how water crosses the line. These features show where water concentrates, where it’s channeled or blocked, and how the elevations transition between the properties. Capturing them in detail documents how runoff moves across the shared edge.
